Survey and polling tools are
often used in marketing or politics to assess ratings for certain services or
products. Polling tools can take many forms, some just use a
simple dichotomous scale of Yes and No, or a more complex Likert Scale that
consists of three or more choices. You can create Polling
tool in Visual Basic easily by using the option buttons. In
our program, the users are given five choices, Excellent, Very
Good, Good, Satisfactory and Bad.The results are presented
in frequency and percentage respectively.

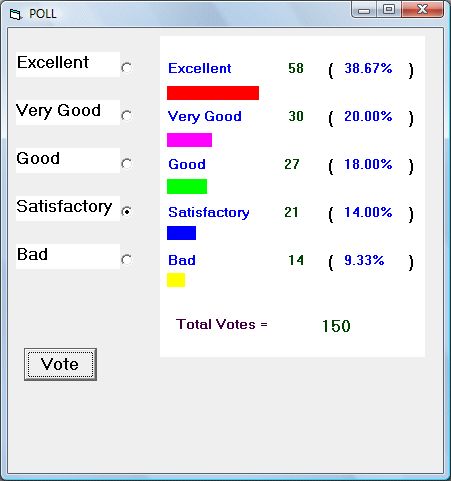

In this example, we include a graphical display of the percentages of the
five scores using the Line method. The syntax to
draw the rectangular bar in a picture box is

*Picture1.Line (x1, y1)-(x2,
y2), color, BF*

where (x_{1},y_{1}) is the coordinates
of the upper left corner of the bar and

(x_{2},y_{2}) is the coordinates of
the lower right corner of the bar.

To show the bar length according
to the percentage, we can use certain value to multiply the
decimal value of each score and put it under x_{2}.

Finally, we can use the Picture1.Cls
method to clear the picture box in order to refresh the
drawing.

**The Code**

Dim total, Excel_total, VG_total, G_total, Sat_total, Bad_total As Integer

Dim Excel_percent, VG_percent, G_percent, Sat_percent, Bad_percent As Single

Dim done As Boolean

Private Sub cmd_Vote_Click()

Picture1.Cls

If Option_Excel.Value = True Then

Excel_total = Excel_total + 1

Lbl_ExcelTotal = Excel_total

ElseIf Option_VG.Value = True Then

VG_total = VG_total + 1

Lbl_VGTotal = VG_total

ElseIf Option_G.Value = True Then

G_total = G_total + 1

Lbl_GTotal = G_total

ElseIf Option_Sat.Value = True Then

Sat_total = Sat_total + 1

Lbl_SatTotal = Sat_total

ElseIf Option_Bad.Value = True Then

Bad_total = Bad_total + 1

Lbl_BadTotal = Bad_total

End If

total = Excel_total + VG_total + G_total + Sat_total + Bad_total

Lbl_Total = total

Excel_percent = Excel_total / total

VG_percent = VG_total / total

G_percent = G_total / total

Sat_percent = Sat_total / total

Bad_percent = Bad_total / total

Lbl_Excel.Caption = Format(Excel_percent, "Percent")

Lbl_VG.Caption = Format(VG_percent, "Percent")

Lbl_G.Caption = Format(G_percent, "Percent")

Lbl_Sat.Caption = Format(Sat_percent, "Percent")

Lbl_Bad.Caption = Format(Bad_percent, "Percent")

Picture1.Line (100, 750)-(3800 * Excel_percent, 950), vbRed, BF

Picture1.Line (100, 1450)-(3800 * VG_percent, 1650), vbMagenta, BF

Picture1.Line (100, 2150)-(3800 * G_percent, 2350), vbGreen, BF

Picture1.Line (100, 2850)-(3800 * Sat_percent, 3050), vbBlue, BF

Picture1.Line (100, 3550)-(3800 * Bad_percent, 3750), vbYellow, BF

End Sub
