Visual Basic 2013 Lesson 30: Creating Graphics-Filling Shapes with Color

Share on FacebookShare on Google+Tweet about this on TwitterShare on LinkedInEmail this to someone

[Lesson 29] << [Contents] >> [Lesson 31]

30.1 Filling Shapes with Colours

In preceding lessons, we have learned how to draw rectangle, ellipse ,circle ,polygon and pie with outlines only. In this lesson, we will show you how to fill the shapes with color, or simply solid shapes in Visual Basic 2103. Three methods that are used to fill shapes are FillRectangle, FillEllipse , FillPolygon and FillPie.In order to fill the above shapes with color, we need to create the Brush object using the following syntax:

myBrush = New SolidBrush(Color.myColor)



Where myColor can be any color such as red,blue, yellow and more. You don’t have to worry about the names of the colors because the intellisense will display the colors and enter the period after the Color key word.

30.2 Drawing and Filling a Rectangle with Colour

In Visual Basic 2013, the syntax to fill a rectangle with the color defined by the brush object is:

myGraphics.FillRectangle (myBrush, 0, 0, 150, 150)

Example 30.1

Private Sub BtnDraw_Click(sender As Object, e As EventArgs) Handles BtnDraw.Click
Dim myPen As Pen
Dim myBrush As Brush
Dim myGraphics As Graphics = Me.CreateGraphicsmyPen = New Pen(Drawing.Color.Blue, 5)
 myBrush = New SolidBrush(Color.Coral)
 myGraphics.DrawRectangle(myPen, 65, 50, 150, 150)
 myGraphics.FillRectangle(myBrush, 65, 50, 150, 150)
End Sub

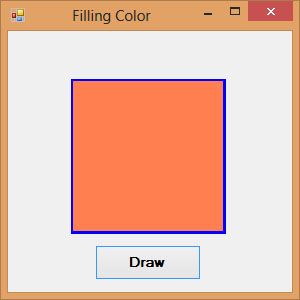

The output is as shown in Figure 30.1

vb2013_figure30.1Figure 30.1




*Note that if you omit the line myGraphics.DrawRectangle(myPen, 65, 50, 150, 150), you will get a solid rectangle without outline, as shown in in Figure 30.2

vb2013_figure30.2Figure 30.2

30.3 Drawing and Filling an Ellipse with Colour

The syntax to fill a ellipse with the color defined by the brush object is:

myGraphics.FillEllipse (myBrush, 0, 0, 150, 150)

Example 30.2

Private Sub BtnDraw_Click(sender As Object, e As EventArgs) Handles BtnDraw.Click
Dim myPen As Pen
Dim myBrush As Brush
Dim myGraphics As Graphics = Me.CreateGraphicsmyPen = New Pen(Drawing.Color.Blue, 5)
 myBrush = New SolidBrush(Color.Coral)
 myGraphics.DrawEllipse(myPen, 50, 50, 180, 100)
 myGraphics.FillEllipse(myBrush, 50, 50, 180, 100)
End Sub

The output interface is as shown in Figure 30.3

vb2013_figure30.3

 Figure 30.3

*If you omit the line myGraphics.DrawEllipse(myPen, 50, 50, 180, 100), you will get a solid ellipse without outline.

30.4 Drawing and Filling a Polygon with Color

The syntax to fill a polygon with the color defined by the brush object is:

myGraphics.FillPolygon(myBrush, myPoints)

Example 30.3

Private Sub BtnDraw_Click(sender As Object, e As EventArgs) Handles BtnDraw.Click
Dim myPen As Pen
Dim myBrush As Brush
Dim A As New Point(70, 10)
Dim B As New Point(170, 50)
Dim C As New Point(200, 150)
Dim D As New Point(140, 200)
Dim myPoints As Point() = {A, B, C, D}
 myPen = New Pen(Drawing.Color.Blue, 5)
 myBrush = New SolidBrush(Color.Coral)
Dim myGraphics As Graphics = Me.CreateGraphics
 myGraphics.DrawPolygon(myPen, myPoints)
 myGraphics.FillPolygon(myBrush, myPoints)
End Sub

The output interface is as shown in Figure 30.4

vb2013_figure30.4Figure 30.4

* if you omit myGraphics the line DrawPolygon(myPen, myPoints),  you will get a polygon without outline



30.4 Drawing and Filling a Pie with Colour

The syntax to fill a pie with the color defined by the brush object is:

myGraphics.FillPie(myBrush, X, Y, width, height, StartAngle, SweepAngle)

Example 30.4

Private Sub BtnDraw_Click(sender As Object, e As EventArgs) Handles BtnDraw.Click
Dim myPen As Pen
Dim myBrush As Brush
Dim myGraphics As Graphics = Me.CreateGraphics
 myPen = New Pen(Drawing.Color.Blue, 5)
 myBrush = New SolidBrush(Color.Coral)
 myGraphics.DrawPie(myPen, 30, 40, 150, 150, 0, 60)
 myGraphics.FillPie(myBrush, 30, 40, 150, 150, 0, 60)
End Sub

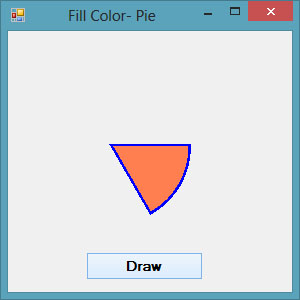

The output is as shown in Figure 30.5

vb2013_figure30.5

 Figure 30.5
