Lesson 26 Introduction to Graphics


26.1 Introduction

Creating graphics is relatively easy in earlier versions of Visual Basic because they have built-in drawing tools. For example, In Visual Basic 6, the drawing tools are included in the toolbox where the programmer just needs to drag the shape controls into the form to create rectangle, square, ellipse, circle and more. However, its simplicity has the shortcomings, you don’t have many choices in creating customized drawings.

Since Visual Basic evolved into an object-oriented programming language under the VB.net framework, shape controls are no longer available. Now the programmer needs to write code to create various shapes and drawings. Even though the learning curve is steeper, the programmer can write powerful code to create all kinds of graphics. You can even design your own controls. Visual Basic 2015 RC offers various graphics capabilities that enable programmers to write code that can create all kinds of shapes and even fonts. In this Lesson, you will learn how to write code to draw lines and shapes on the Visual Basic 2015 RC IDE.

26.2 Creating the Graphics Object

Before you can draw anything on a form, you need to create the Graphics object in Visual Basic 2015. A graphics object is created using the CreateGraphics() method. You can create a graphics object that draws to the form itself or a control.

To draw graphics on the default form, you can use the following statement:

Dim myGraphics As Graphics =me.CreateGraphics

To draw in a picture box, you can use the following statement:

Dim myGraphics As Graphics = PictureBox1.CreateGraphics

You can also use the text box as a drawing surface, the statement is:

Dim myGraphics As Graphics = TextBox1.CreateGraphics

The Graphics object that is created does not draw anything on the screen until you call the methods of the Graphics object. In addition, you need to create the Pen object as the drawing tool. We shall examine the code that can create a pen in the following section.

26.3 Creating a Pen

A Pen can be created using the following code:

myPen = New Pen(Brushes.Color, LineWidth)

where myPen is a Pen variable. You can use any variable name instead of myPen. The first argument of the pen object defines the color of the drawing line and the second argument defines the width of the drawing line. For example, the following code created a pen that can draw a dark magenta line and the width of the line is 10 pixels:

myPen = New Pen(Brushes.DarkMagenta, 10)

You can also create a Pen using the following statement:

Dim myPen As Pen
myPen = New Pen(Drawing.Color.Blue, 5)

Where the first argument define the color(here is blue, you can change that to red or whatever color you want) and the second argument is the width of the drawing line.

Having created the Graphics and the Pen objects, you are now ready to draw graphics on the screen which we will show you in the following section.

26.4 Drawing a Line

In this section, we will show you how to draw a straight line on the Form.

First of all, launch Visual basic 2015 RC. In the start up page, drag a button into the form. Double click on the button and key in the following code.

Private Sub BtnDraw_Click(sender As Object, e As EventArgs) Handles BtnDraw.Click
Dim myGraphics As Graphics = Me.CreateGraphics

Dim myPen As Pen

myPen = New Pen(Brushes.DarkMagenta, 20)

myGraphics.DrawLine(myPen, 60, 180, 220, 50)
End Sub

The second created the Graphics object and the third and fourth line create the Pen object. The fifth draw a line on the Form using the DrawLine method. The first argument uses the Pen object created by you, the second argument and the third arguments define the coordinate the starting point of the line, the fourth and the last arguments define the ending coordinate of the line. The syntax of the Drawline argument is

object.DrawLine(Pen, x1, y1, x2, y2)

For the above example, the starting coordinate is (60,80) and the ending coordinate is (220,50)

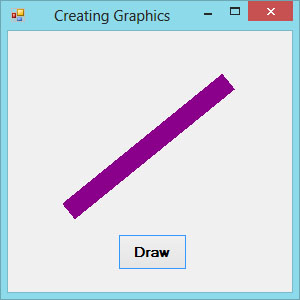

Figure 26.1 shows the line created by the program.

VB2013_figure25.1
Figure 26.1
