Digital Stopwatch



We can design a  stopwatch so that it resembles a typical digital stopwatch. When the user clicks mode, he or she  can select clock, date and stopwatch. When he or she select clocks, the current time is displayed and when date is selected, the current date will be displayed. Lastly, when the user bselect the stopwatch, all the digits will be set to 0 and then it can be used as a stop watch.

In this program, you need to insert one label, three command buttons and two timers. The interval of timer1 which is used for the stopwatch and you need to set the interval at 1(1000th of a second). Timer2 will be used to display the clock and the interval will be set at 1000(or 1 second). We also used  six string variables to display the digits of the stopwatch so that we can put in the colons ":" and the decimal point. We have also created a subroutine known as countime

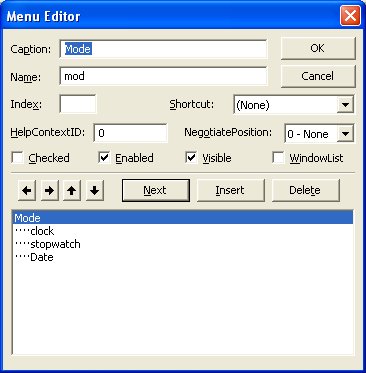

To add the menu items to the interface, you need to add them from the menu editor, as shown below:

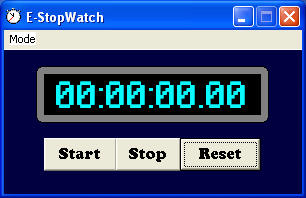

The Interface



The code

Dim a As String
Dim b As String
Dim c As String
Dim x As String
Dim y As String
Dim z As String
Dim h As String
Dim m As String
Dim s As String
Dim u As String
Dim v As String
Public interval As Double

Private Sub clock_Click()
Timer1.Enabled = False
Timer2.Enabled = True
End Sub

Private Sub Command1_Click()
Timer1.Enabled = True
Timer1.interval = 1
End Sub

Private Sub Command2_Click()
Timer1.Enabled = False
End Sub

Private Sub Command3_Click()
Timer1.Enabled = False
a = "0"
b = "0"
c = "0"
x = "0"
y = "0"
z = "0"
u = "0"
v = "0"

h = a + b
m = c + x
s = y + z
'To set the display as "00:00:00.00"
Label1.Caption = h + ":" + m + ":" + s + "." + u + v
End Sub

Sub counttime()
If Val(v) < 9 Then
v = v + 1

Label1.Caption = a + b + ":" + c + x + ":" + y + z + "." + u + v
ElseIf Val(u) < 9 Then
v = 0
u = u + 1

Label1.Caption = a + b + ":" + c + x + ":" + y + z + "." + u + v
ElseIf Val(z) < 9 Then
v = 0
u = 0

z = z + 1

Label1.Caption = a + b + ":" + c + x + ":" + y + z + "." + u + v
ElseIf Val(y) < 5 Then
v = 0
u = 0
z = 0
y = y + 1
Label1.Caption = a + b + ":" + c + x + ":" + y + z + "." + u + v
ElseIf Val(x) < 9 Then
v = 0
u = 0
z = 0
y = 0
x = x + 1
Label1.Caption = a + b + ":" + c + x + ":" + y + z + "." + u + v
ElseIf Val(c) < 5 Then
v = 0
u = 0
z = 0
y = 0
x = 0
c = c + 1
Label1.Caption = a + b + ":" + c + x + ":" + y + z + "." + u + v
ElseIf Val(b) < 9 Then
v = 0
u = 0
z = 0
y = 0
x = 0
c = 0
b = b + 1
Label1.Caption = a + b + ":" + c + x + ":" + y + z + "." + u + v
ElseIf Val(b) < 9 Then
v = 0
u = 0
z = 0
y = 0
x = 0
c = 0
b = b + 1
Label1.Caption = a + b + ":" + c + x + ":" + y + z + "." + u + v
ElseIf Val(a) < 9 Then
v = 0
u = 0
z = 0
y = 0
x = 0
c = 0
b = 0
a = a + 1
Label1.Caption = a + b + ":" + c + x + ":" + y + z + "." + u + v

End If

End Sub

------------------------> Continue on the right column

Private Sub date_Click()

Label1.Caption = Date
Timer2.Enabled = False

End Sub


Private Sub Form_Load()
a = "0"
b = "0"
c = "0"
x = "0"
y = "0"
z = "0"
u = 0
v = 0
h = a + b
m = c + x
s = y + z
'To set the display as "00:00:00.00"
Label1.Caption = h + ":" + m + ":" + s + "." + u + v

End Sub

Private Sub stopwc_Click()
Timer2.Enabled = False
a = "0"
b = "0"
c = "0"
x = "0"
y = "0"
z = "0"
u = "0"
v = "0"

h = a + b
m = c + x
s = y + z
Label1.Caption = h + ":" + m + ":" + s + "." + u + v

End Sub

Private Sub Timer1_Timer()
counttime

End Sub

Private Sub Timer2_Timer()
Label1.Caption = Time
End Sub
