Lesson 16: Arrays

<Previous Lesson> <<Home>> < Next Lesson>

16.1 Introduction to Arrays

By definition, an array is a variable with a single name that represents many different items. When we work with a single item, we only need to use one variable. However, if we have a list of items which are of similar type to deal with, we need to declare an array of variables instead of using a variable for each item

For example, if we need to enter one hundred names, it is difficulty to declare 100 different names. Besides, if we want to process those data that involves decision making, we might have to use hundreds of if...then statements, this is a waste of time and efforts.So,  instead of declaring one hundred different variables, we need to declare only one array.  We differentiate each item in the array by using subscript, the index value of each item, for example name(1), name(2),name(3) .......etc. , makes declaring variables more streamline.

16.2 Dimension of an Array

An array can be one dimensional or multidimensional. One dimensional array is like a list of items or a table that consists of one row of items or one column of items.

A two dimensional array is a table of items that make up of rows and columns. The format for a one dimensional array is ArrayName(x), the format for a two dimensional array is ArrayName(x,y) and a three dimensional array is ArrayName(x,y,z) . Normally it is sufficient to use one dimensional and two dimensional array ,you only need to use higher dimensional arrays if you need to deal with more complex problems. Let me illustrate the the arrays with tables.

Table 16.1. One dimensional Array

Student Name Name(1) Name(2) Name(3) Name(4)

Table 16.2 Two Dimensional Array

Name(1,1) Name(1,2) Name(1,3) Name(1,4)
Name(2,1) Name(2,2) Name(2,3) Name(2,4)
Name(3,1) Name(3,2) Name(3,3) Name(3,4)


16.2 Declaring Array

We can use Public or Dim statement to declare an array just as the way we declare a single variable. The Public statement declares an array that can be used throughout an application while the Dim statement declare an array that could be used only in a local procedure.

16.2.1 Declaring one dimensional Array

The general syntax to declare a one dimensional array is as follow:

Dim arrayName(subscript) as dataType

where subs indicates the last subscript in the array.

When you declare an array, you need to be aware of the number of elements created by the Dim keyword. In the Dim arrayName(subscript) statement, subscript actually is a constant that defines the maximum number of elements allowed. More importantly, subs start with 0 instead of 1. Therefore, the Dim arrangeName(10) statement creates 11 elements numbered 0 to 11. There are two ways to overcome this problem, the first way is by uisng the keyword Option Base 1, as shown in Example 16.1.

Example 16.1

Option Base 1
Dim CusName(10) as String

will declare an array that consists of 10 elements if the statement Option Base 1 appear in the declaration area, starting from CusName(1) to CusName(10). Otherwise, there will be 11 elements in the array starting from CusName(0) through to CusName(10)

CusName(1) CusName(2) CusName(3) CusName(4) CusName(5)
CusName(6) CusName(7) CusName(8) CusName(9) CusName(10)

The second way is to specify the lower bound and the upper bound of the subscript using To keyword. The syntax is

Dim arrayName(lowerbound To upperbound) As dataType

Example 16.2

Dim Count(100 to 500) as Integer

declares an array that consists of the first element starting from Count(100) and ends at Count(500)


Example 16.3

Dim studentName(1 to 10) As String
Dim num As Integer
Private Sub addName()
For num = 1 To 10
studentName(num) = InputBox("Enter the student name","Enter Name", "", 1500, 4500)
If studentName(num)<>"" Then
Form1.Print studentName(num)
Else
End
End If
Next
End Sub

**The program accepts data entry through an input box and displays the entries in the form itself.

Example 16.4

Dim studentName(1 to 10) As String
Dim num As Integer
Private Sub addName( )
For num = 1 To 10
studentName(num) = InputBox("Enter the student name")
List1.AddItem studentName(num)
Next
End Sub
Private Sub Start_Click()
addName
End Sub

**The program accepts data entries through an InputBox and displays the items in a list box.

16.2.2 Declaring two dimensional Array

The general syntax to declare a two dimensional array is as follow:

Dim ArrayName(Sub1,Sub2) as dataType

Example 16.5

If you wish to compute a summary of students involve in games according to different year in a high school, you need to declare a two dimensional array. In this example, let's say we have 4 games, football, basketball, tennis and hockey and the classes are from year 7 to year 12. We can create an array as follows:

Dim StuGames(1 to 4,7 to 12 ) As Integer

will create an array of four rows and six columns, as shown in the following table:

Year 7 8 9 10 11 12
Football StuGames(1,7) StuGames(1,8) StuGames(1,9) StuGames(1,10) StuGames(1,11) StuGames(1,12)
Basketball StuGames(2,7) StuGames(2,8) StuGames(2,9) StuGames(2,10) StuGames(2,11) StuGames(2,12)
Tennis StuGames(3,7) StuGames(3,8) StuGames(3,9) StuGames(3,10) StuGames(3,11) StuGames(3,12)
Hockey StuGames(4,7) StuGames(4,8) StuGames(4,9) StuGames(4,10) StuGames(4,11) StuGames(4,12)

Example 16.6

In this example, we want to summarize the first half-yearly sales volume for four products. Therefore, we declare a two dimension array as follows:

Dim saleVol(1 To 4, 1 To 6) As Integer

Besides that, we want to display the output in a table form. Therefore, we use a list box. We named the list box listVolume. AddItem is a listbox method to populate the listbox.

The code

Private Sub cmdAdd_Click()
Dim prod, mth As Integer ' prod is product and mth is month
Dim saleVol(1 To 4, 1 To 6) As Integer
Const j = 1
listVolume.AddItem vbTab & "January" & vbTab & "February" & vbTab & "March" _
& vbTab & "Apr" & vbTab & "May" & vbTab & "June"
listVolume.AddItem vbTab & "____________________________________________"
For prod = 1 To 4
For mth = 1 To 6
saleVol(prod, mth) = InputBox("Enter the sale volume for" & " " & "product" & " " & prod & " " & "month" & " " & mth)

Next mth
Next prod

For i = 1 To 4

listVolume.AddItem "Product" & "" & i & vbTab & saleVol(i, j) & vbTab & saleVol(i, j + 1) & vbTab & saleVol(i, j + 2) _
& vbTab & saleVol(i, j + 3) & vbTab & saleVol(i, j + 4) & vbTab & saleVol(i, j + 5)

Next i

End Sub

*Note: the keyword vbTab is to create a space

The output is shown in the figure below:

Figure 16.1

16.3 Dynamic Array

So far we have learned how to define the number of elements in an array during design time. This type of array is known as static array. However, the problem is sometimes we might not know how many data items we need to store during run time. In this case, we need to use dynamic array where the number of elements will be decided during run time. In VB6, the dynamic array can be resized when the program is executing. The first step in declaring a dynamic array is by using the Dim statement without specifying the dimenson list, as follows:

      Dim myArray()

Then at run time we can specify the actual array size using the ReDim statement,as follows:

      ReDim myArray(1 to n) when n is decided during run time

You can also declare a two dimensional array using ReDim statement, as follows:

      ReDim myArray(1 to n, 1 to m) when m and n are known during run time

Example 16.7

In this example, we want to display the elements of an array in a list box. The size of the array will only be known during run time. It demonstrates the creation of a dynamic array using the ReDim keyword.

The Code

Private Sub cmd_display_Click()

     Dim myArray() As Integer
     Dim i, n As Integer
     n = InputBox("Enter the upper bound of array")
     List1.Clear

     For i = 1 To n
     ReDim myArray(i)
     myArray(i) = i ^ 2
     List1.AddItem myArray(i)

     Next

    End Sub

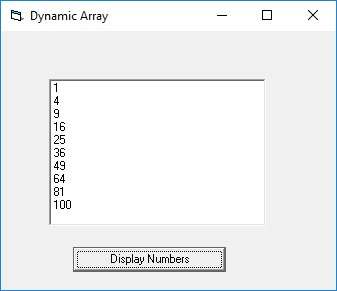

The output

Figure 16.2

Another problem related to ReDim is each time you ReDim an array, the values currently stored in the array are lost. In order to preserve the stored values, we can use the keywords ReDim Preserve, as follows

           ReDim Preserve MyArray(n)

where n is the new upper bound of the array
